JAVA实验：图形用户界面编程 原创

JAVA实验：图形用户界面编程

实验目的（分掌握、熟悉、了解三个层次）：

1、 了解GUI开发的相关原理和技巧

2、 掌握AWT事件处理、布局管理器

3、 熟悉Swing组件的使用

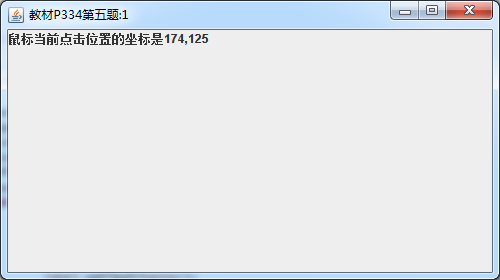

第一题

package com.test;
import java.awt.*;
import java.awt.event.*;

import javax.swing.*;
 /**
  * 教材P334第五题:1
  * @author luolei
  *
  */
public class Demo1 extends JFrame {

    /**
	 *
	 */
	private static final long serialVersionUID = 1L;

	public Demo1() {
    	this.setTitle("教材P334第五题:1");

        final JLabel label = new JLabel("此处显示鼠标右键点击的坐标");
        label.setOpaque(true);
        this.add(label, BorderLayout.NORTH);
        this.setSize(500, 300);
        this.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
        this.addMouseListener(new MouseAdapter() {
                public void mouseClicked(MouseEvent e) {
                    if (e.getButton() == e.BUTTON3) {
                        int x = e.getX();
                        int y = e.getY();
                        String banner = "鼠标当前点击位置的坐标是" + x + "," + y;
                        label.setText(banner);
                    }
                }
            });
        this.setVisible(true);
    }

    public static void main(String[] args) {
        new Demo1();
    }
}

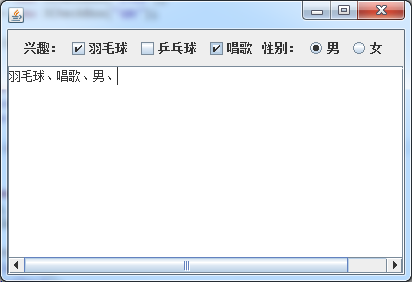

第二题

package com.test;

import java.awt.BorderLayout;
import java.awt.event.ActionEvent;
import java.awt.event.ActionListener;

import javax.swing.ButtonGroup;
import javax.swing.JCheckBox;
import javax.swing.JFrame;
import javax.swing.JLabel;
import javax.swing.JPanel;
import javax.swing.JRadioButton;
import javax.swing.JScrollPane;
import javax.swing.JTextArea;

/**
 * 教材P334第五题:2
 * @author luolei
 *
 */
public class Demo2 extends JFrame implements ActionListener {

	private static final long serialVersionUID = 1L;

	JLabel lable1 = new JLabel("兴趣：");

	  JCheckBox yuCheck = new JCheckBox("羽毛球");
	  JCheckBox pingCheck = new JCheckBox("乒乓球");
	  JCheckBox songCheck = new JCheckBox("唱歌");

	  JLabel lable2 = new JLabel("性别：");

	  /**
	   * 定义按钮组
	   */
	  ButtonGroup group=new ButtonGroup();
	  JRadioButton nanButton = new JRadioButton("男");
	  JRadioButton nvButton = new JRadioButton("女");

	  JTextArea textArea = new JTextArea(10, 40);

	  public Demo2() {
		  this.setLayout(new BorderLayout());
		  this.setSize(500, 300);
	      this.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);

		  JPanel jPanelNorth = new JPanel();
		  jPanelNorth.add(lable1);
		  jPanelNorth.add(yuCheck);
		  jPanelNorth.add(pingCheck);
		  jPanelNorth.add(songCheck);
		  jPanelNorth.add(lable2);
		  jPanelNorth.add(nanButton);
		  jPanelNorth.add(nvButton);
		  this.add(jPanelNorth, BorderLayout.NORTH);

		  group.add(nanButton);
		  group.add(nvButton);

		  JScrollPane scrollPane = new JScrollPane(textArea);
		  this.add(scrollPane, BorderLayout.CENTER);

		  yuCheck.addActionListener(this);
		  pingCheck.addActionListener(this);
		  songCheck.addActionListener(this);
		  nanButton.addActionListener(this);
		  nvButton.addActionListener(this);

		  this.setVisible(true);

	  }

	public static void main(String args[]) {
		new Demo2();
	}

	@Override
	public void actionPerformed(ActionEvent e) {
		System.out.println("actionPerformed");
		if(e.getSource() == yuCheck){
			textArea.append(yuCheck.getText()+"、");
		}else if(e.getSource() == pingCheck){
			textArea.append(pingCheck.getText()+"、");
		}else if(e.getSource() == songCheck){
			textArea.append(songCheck.getText()+"、");
		}else if(e.getSource() == nanButton){
			textArea.append(nanButton.getText()+"、");
		}else if(e.getSource() == nvButton){
			textArea.append(nvButton.getText()+"、");
		}

	}



}
